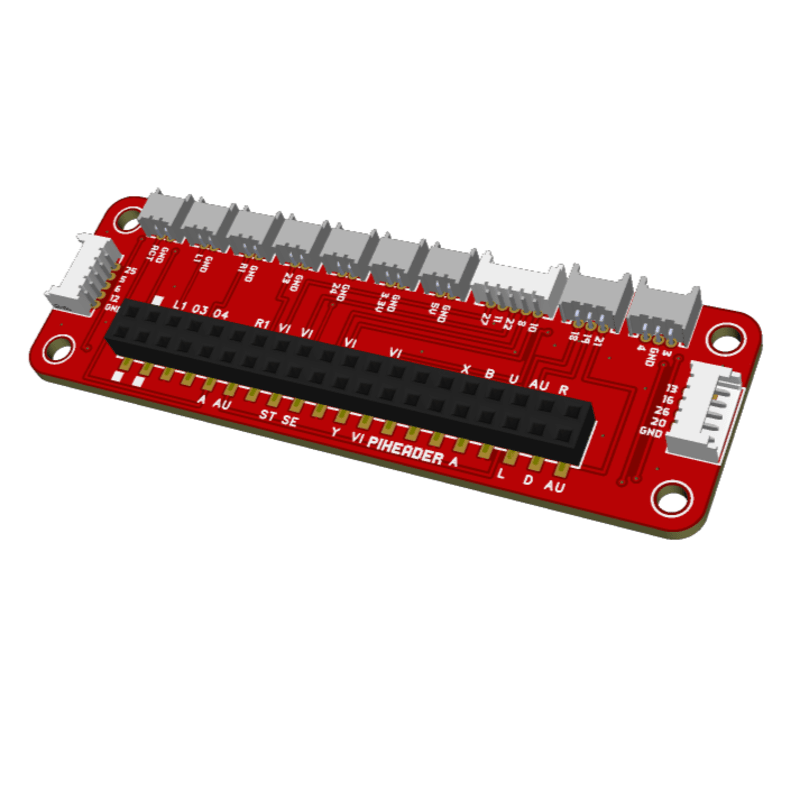

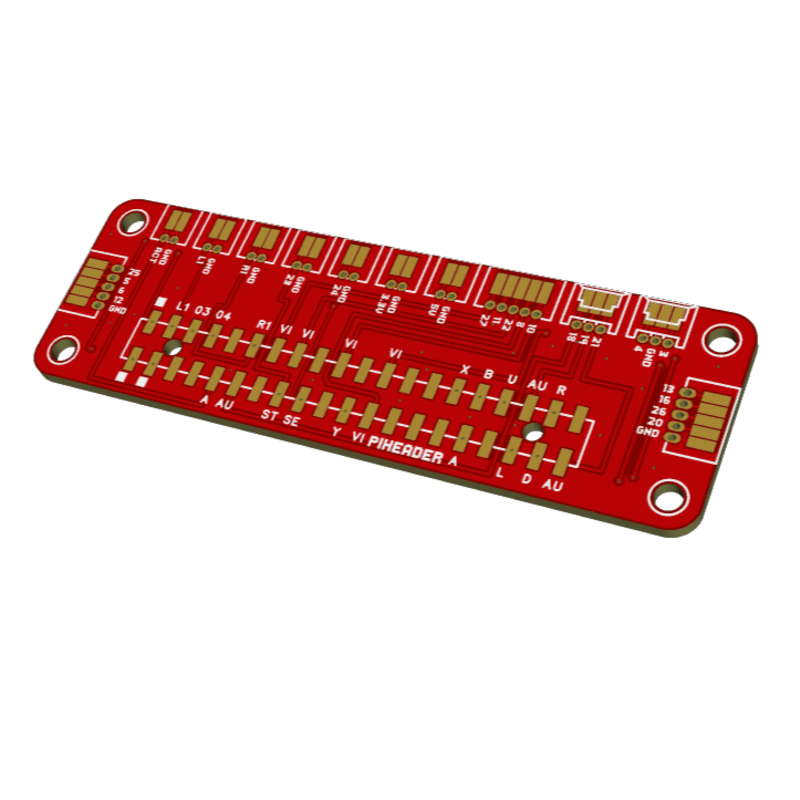

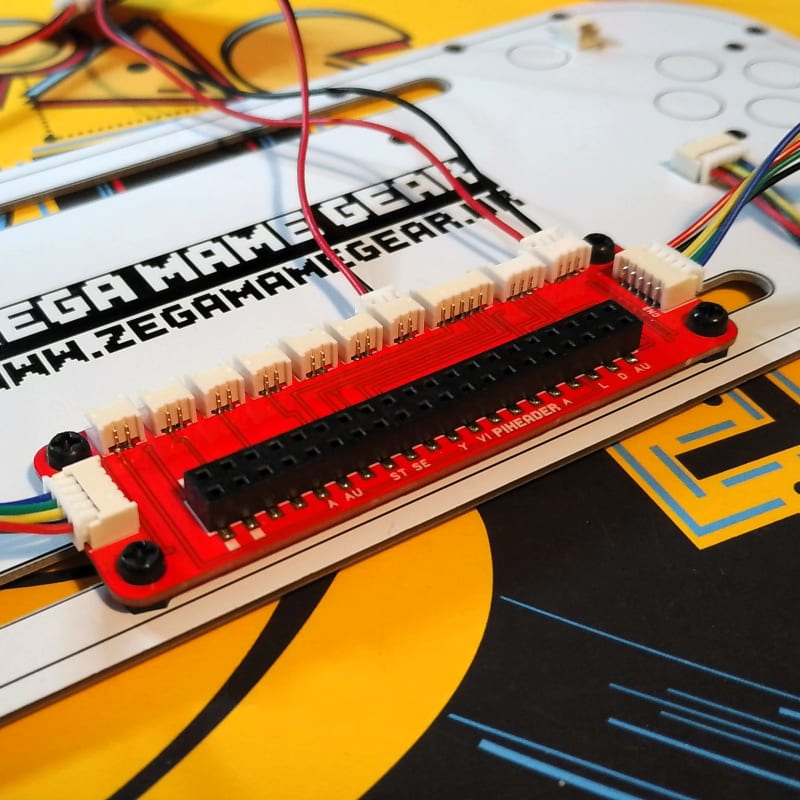

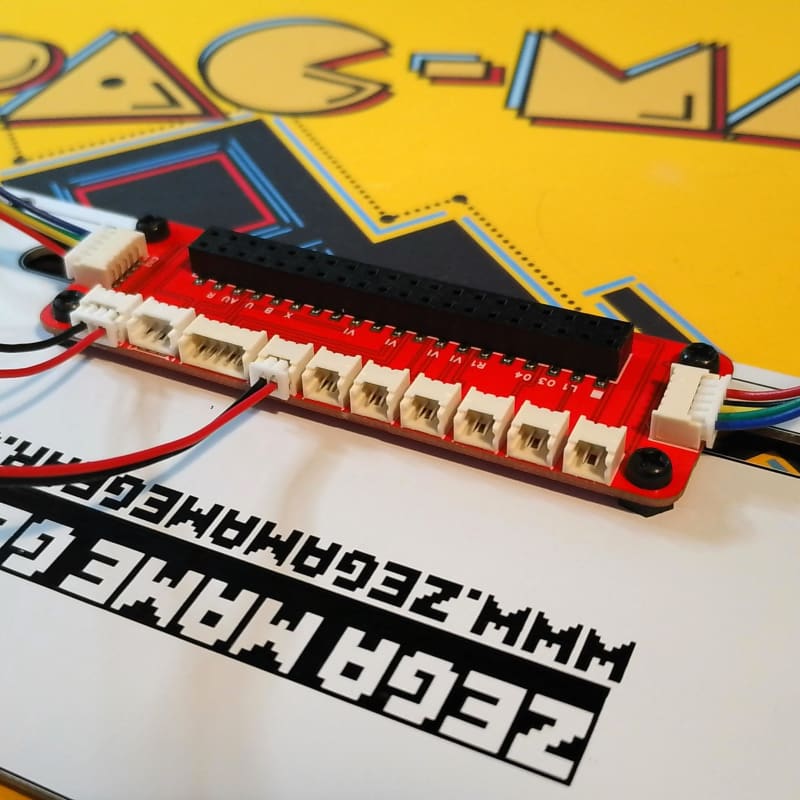

The Tinker Board Pi Connector is the easiest way to add GPIO input to your Tinker Board GamePad.

Now includes GPIO breakout pads for:

• GPIO 18,19 and 21 for I2S Digital Audio
• GPIO 3 and 4 to add Safe Shutdown
• GPIO 15 to add an external ACT LED
• UP, DOWN, LEFT, RIGHT
• A, B, X, Y
• Start
• Select
• L1 and R1 Shoulder Buttons
• SPI Serial LCD

Package contains:

• 1 x PCB
• 3 x 5 Pin 1.25mm JST Sockets
• 2 x 3 Pin 1.25mm JST Sockets
• 7 x 2 Pin 1.25mm JST Sockets
