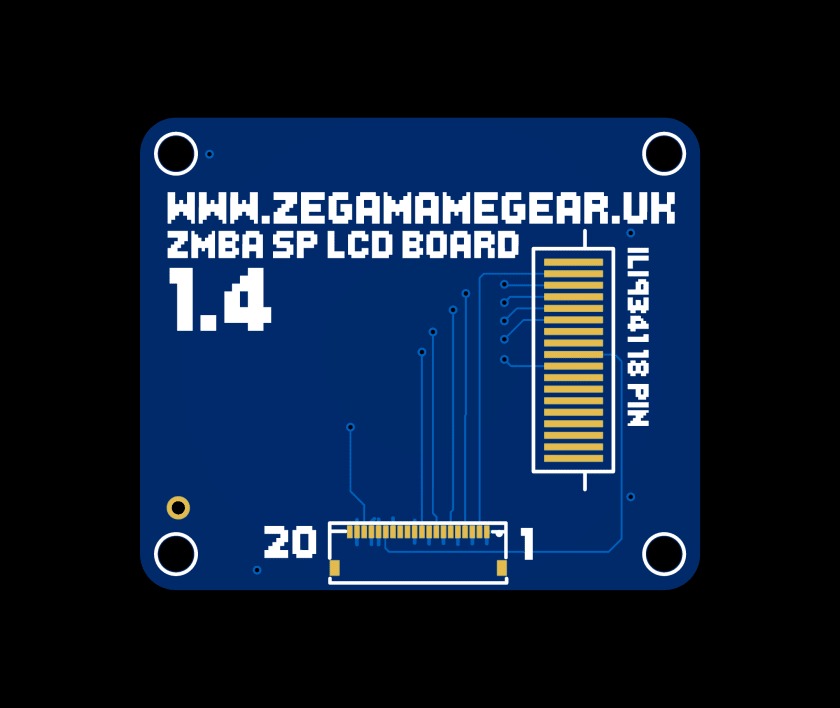

LCD Board Pinout

 FPC RIBBON CONNECTOR PINOUT

  1. GND
  2. GPIO27
  3. GND
  4. GPIO11
  5. GND
  6. GPIO22
  7. GND
  8. GPIO8
  9. GND
  10. GPIO10
  11. GND
  12. GND
  13. GND
  14. GND
  15. 3.3v (Logic)
  16. GND
  17. GND
  18. 3.3v (Backlight)
  19. GND
  20. GND
