Preparing your Gameboy shell is relatively easy and requires few tools. I would recommend having at hand...
- Snips
- Small drill bit (2mm)

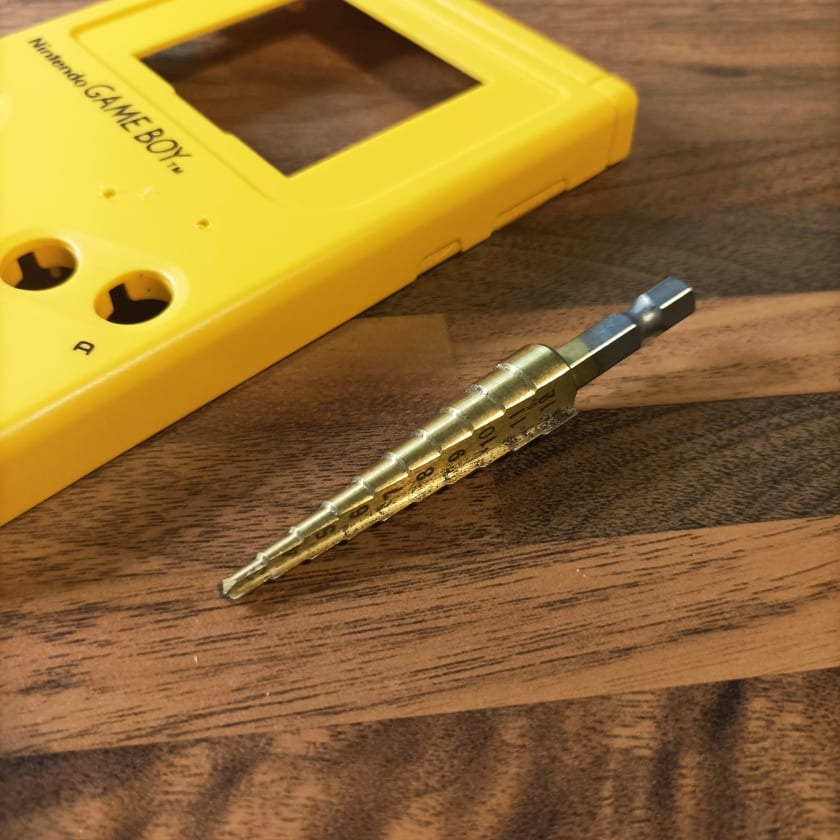

- Stepped drill bit (Up to 11mm minimum)
- Sharp Craft knife (Recommended)
- Scotchbrite (Recommended)
- Crosshead screwdriver

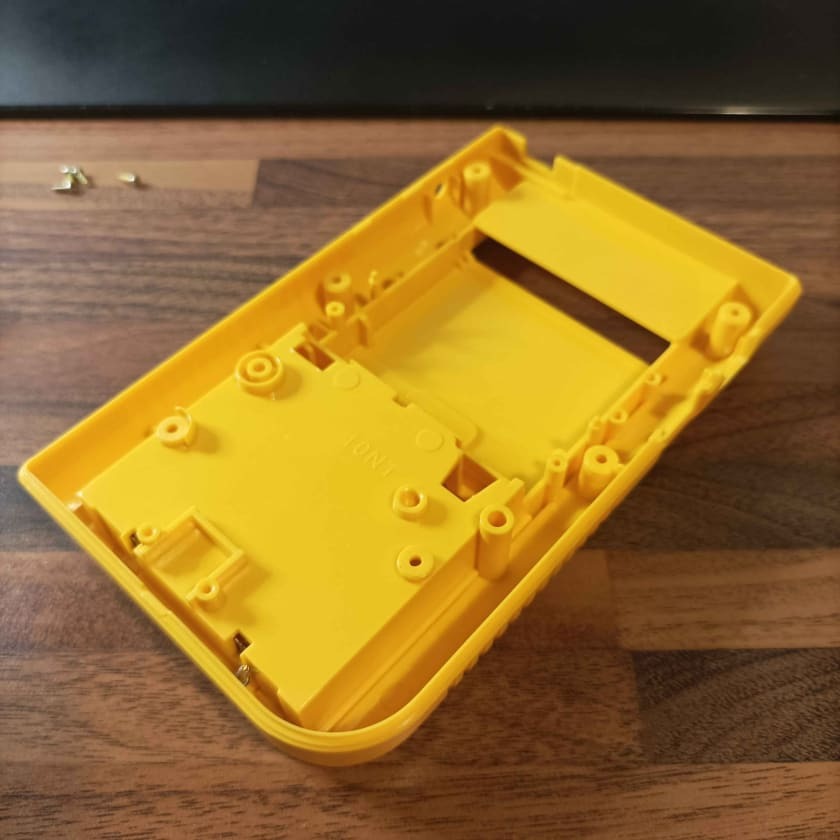

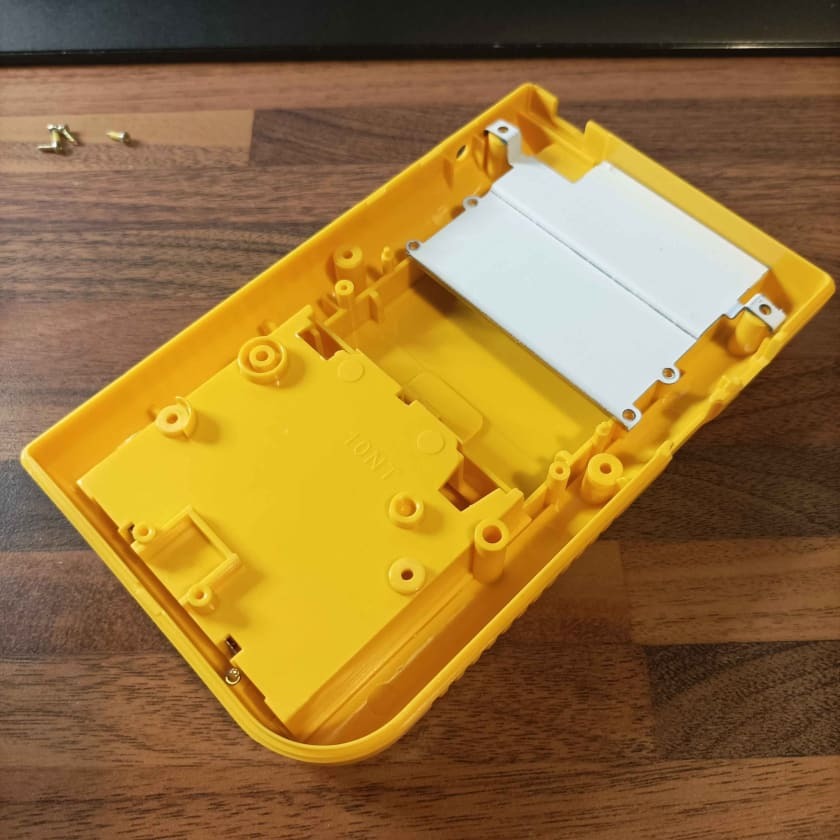

Step 1.
Remove the cartridge guard

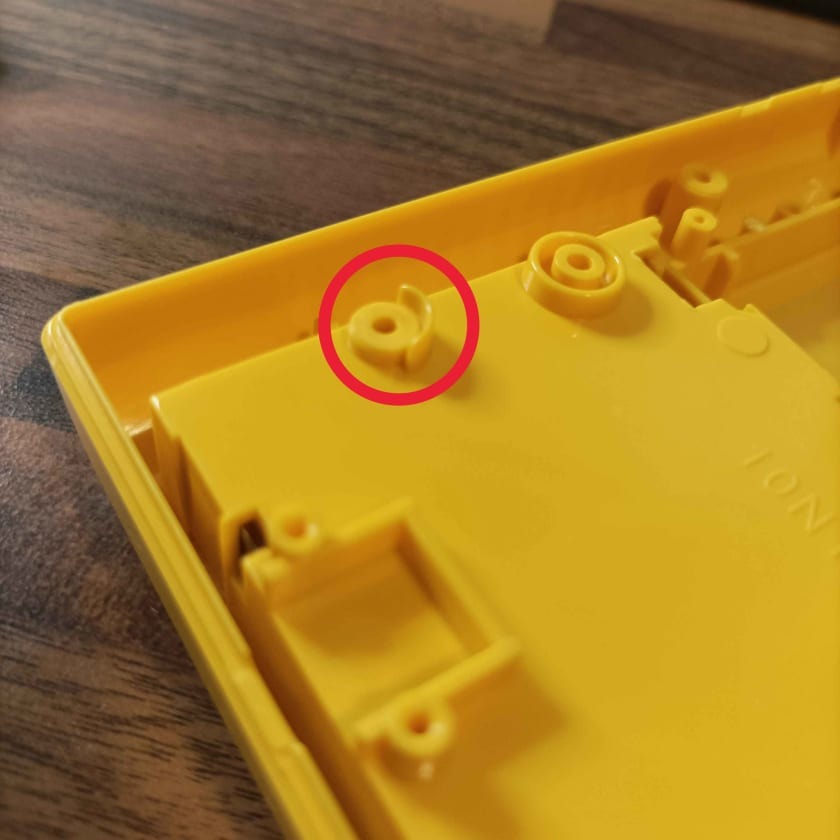

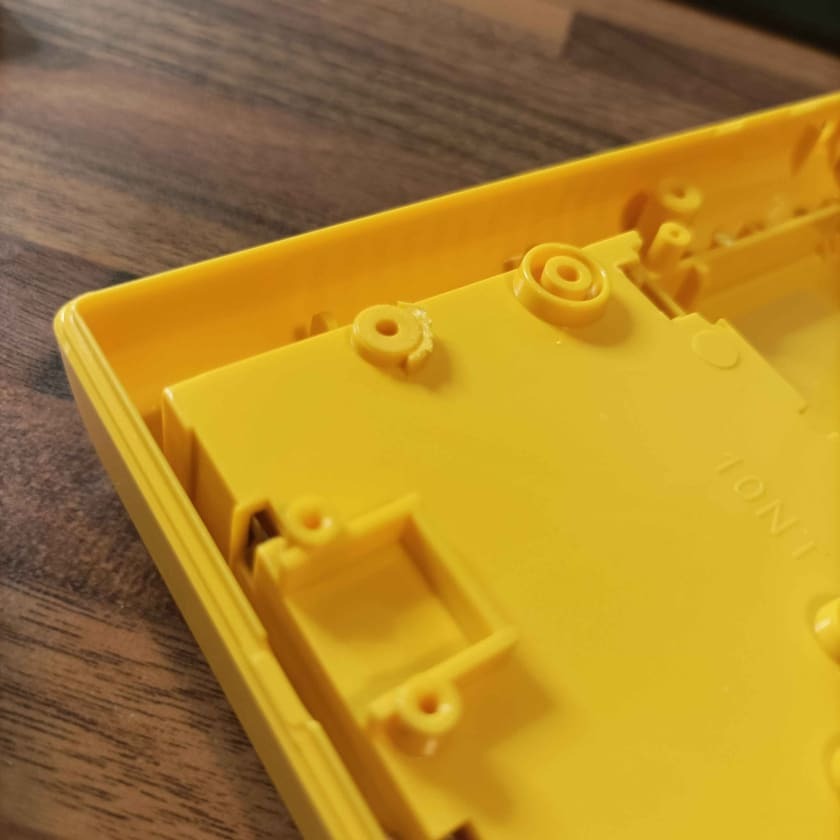

Step 2.

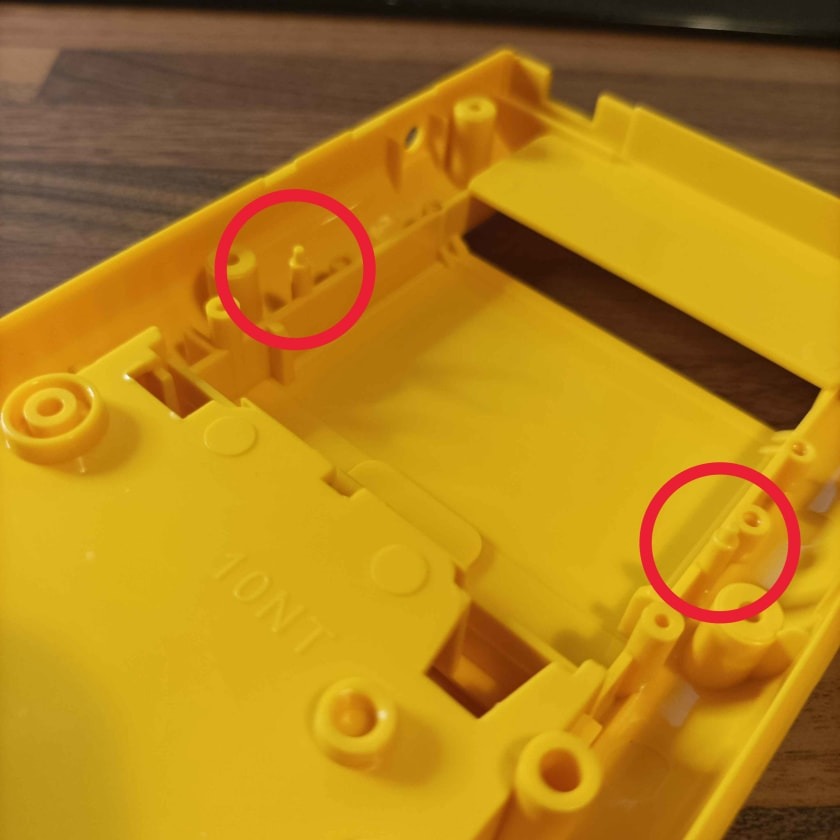

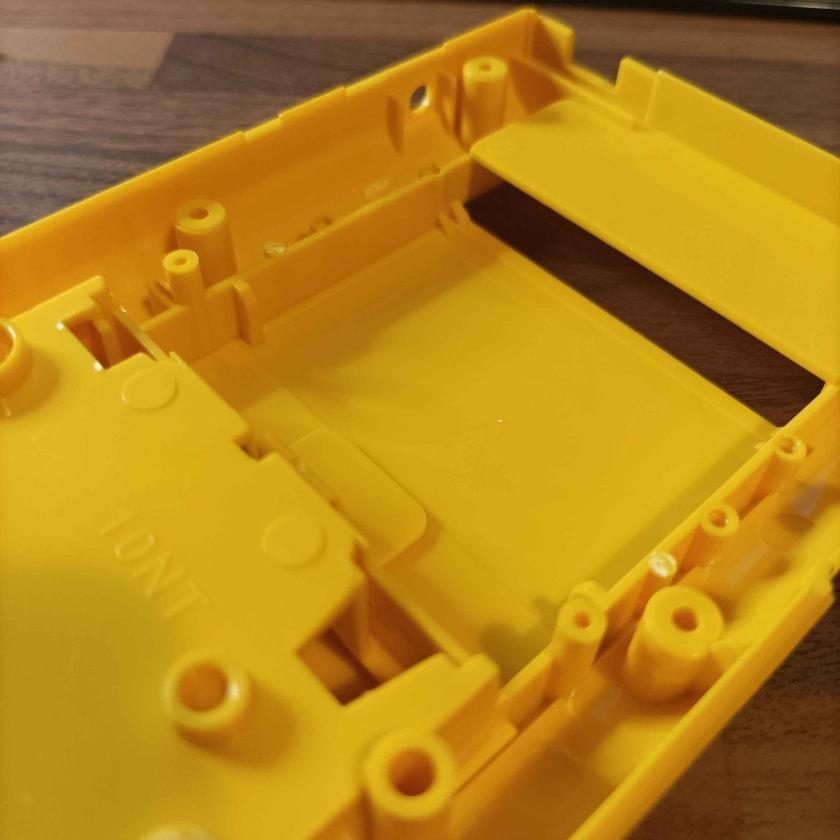

Remove the two posts shown in the photo

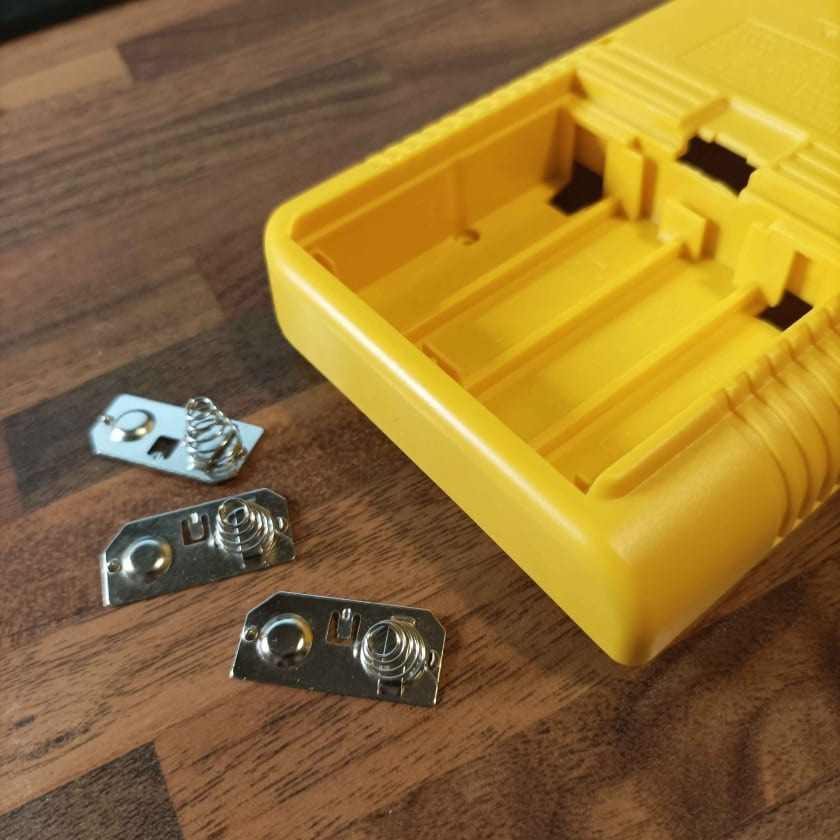

Step 3.
Remove the battery springs

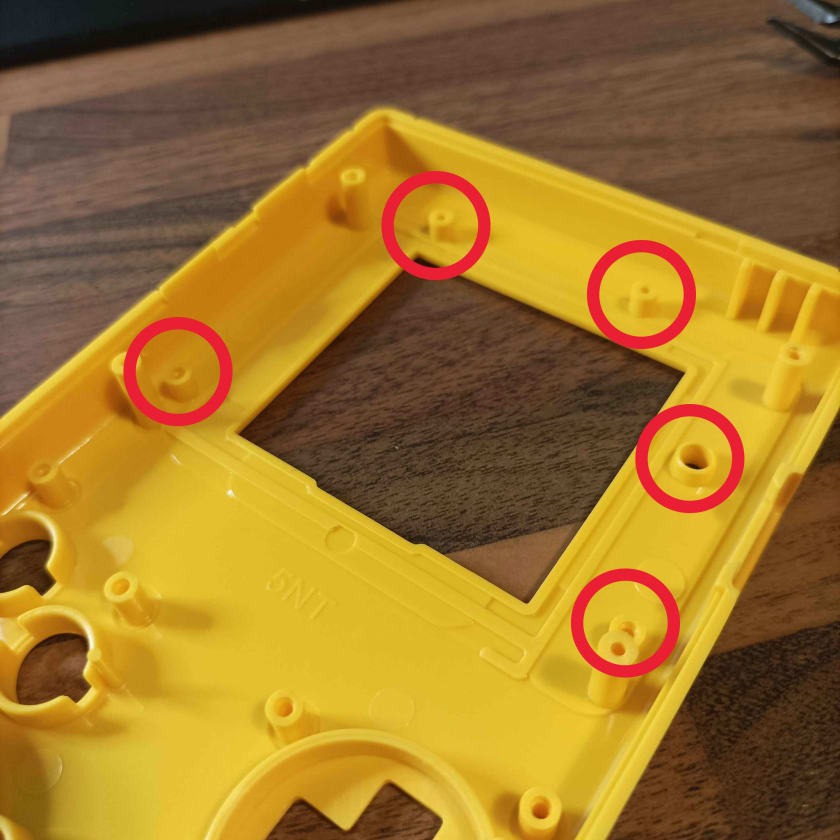

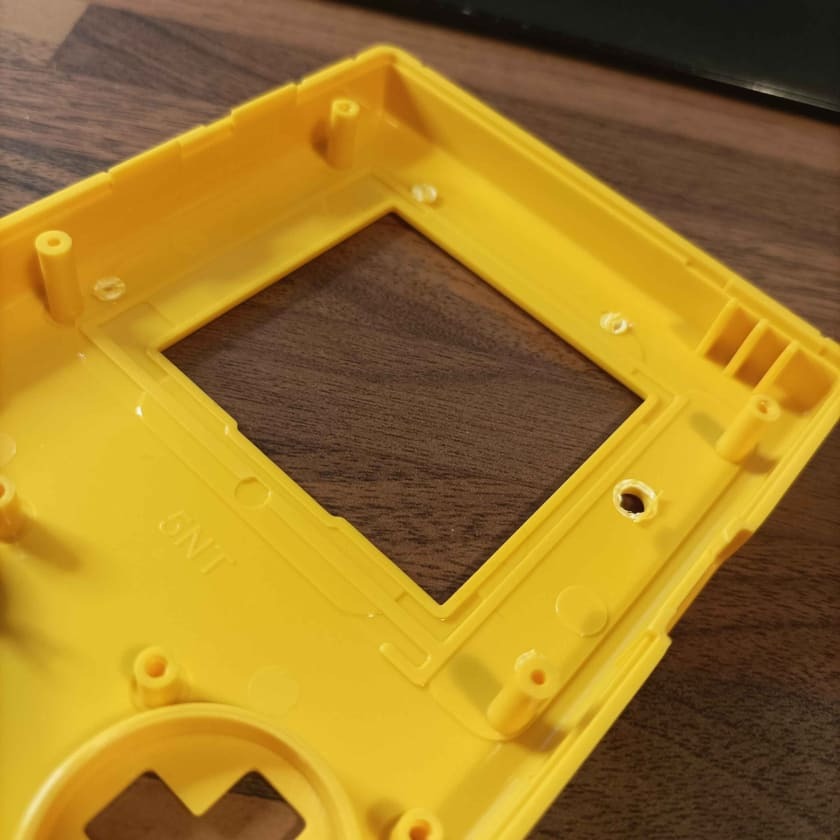

Step 4.
Remove these posts from around the LCD including the raised plastic surrounding the POWER led

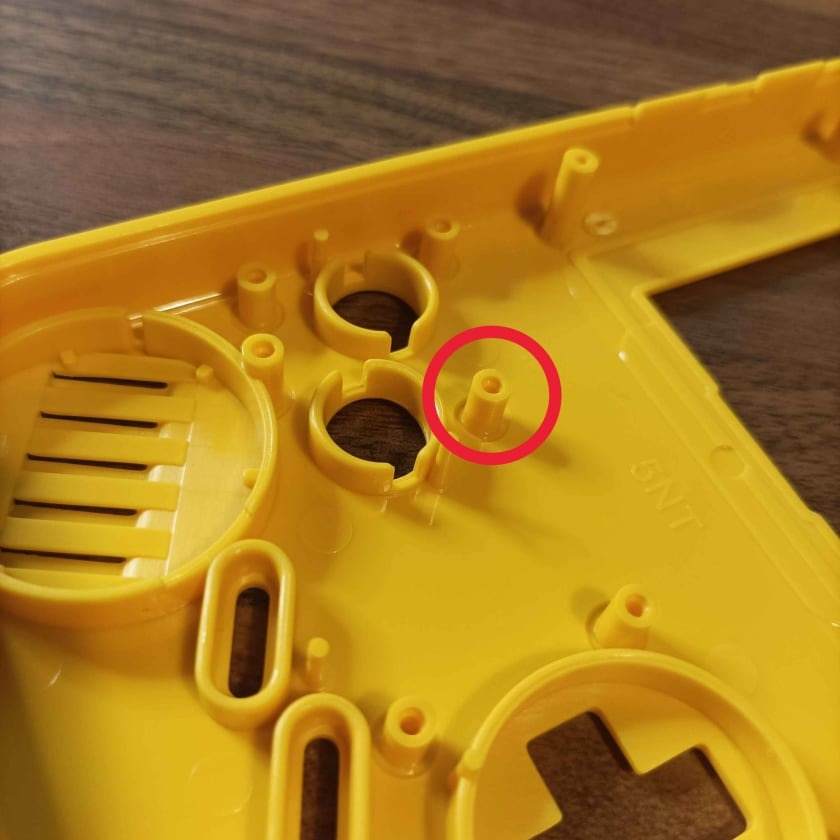

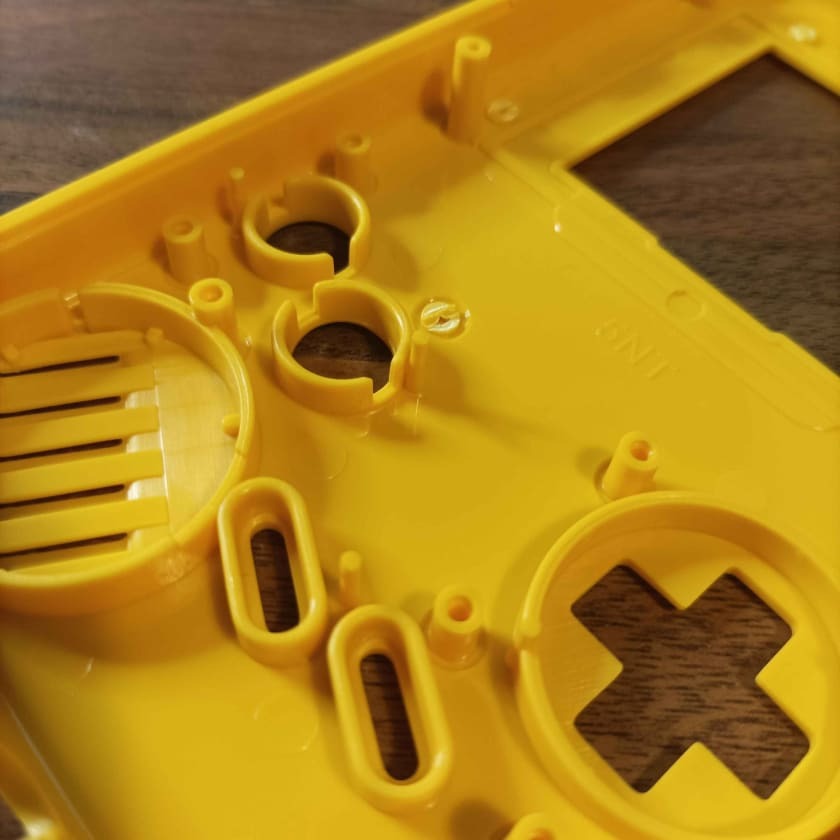

Step 5.
Remove the post next to the buttons

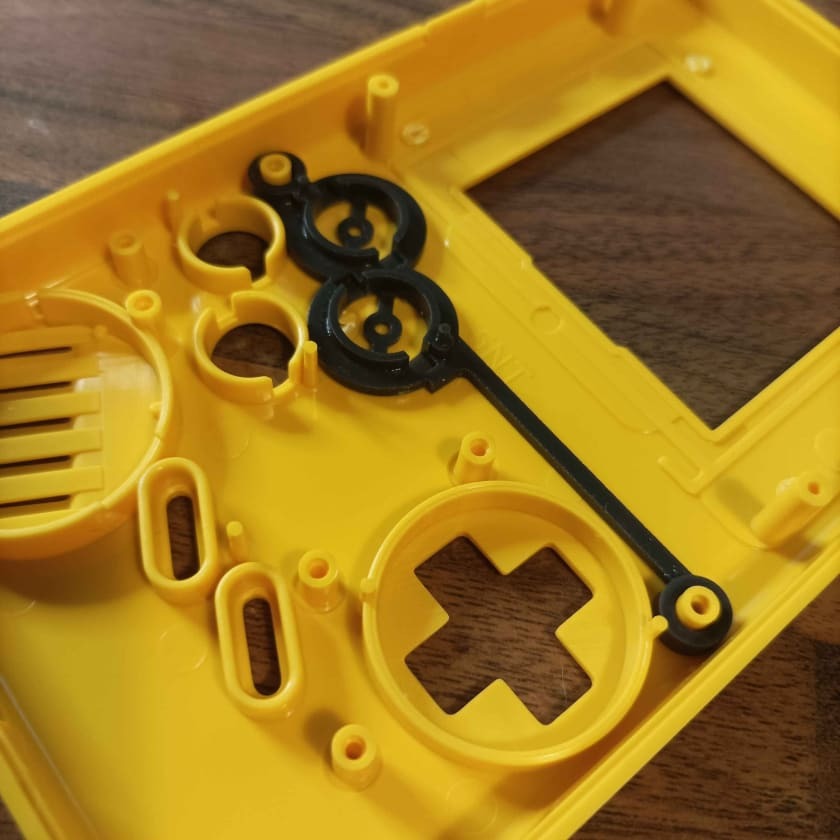

Step 6.
Place the Button Bracket / Drill Guide into your shell

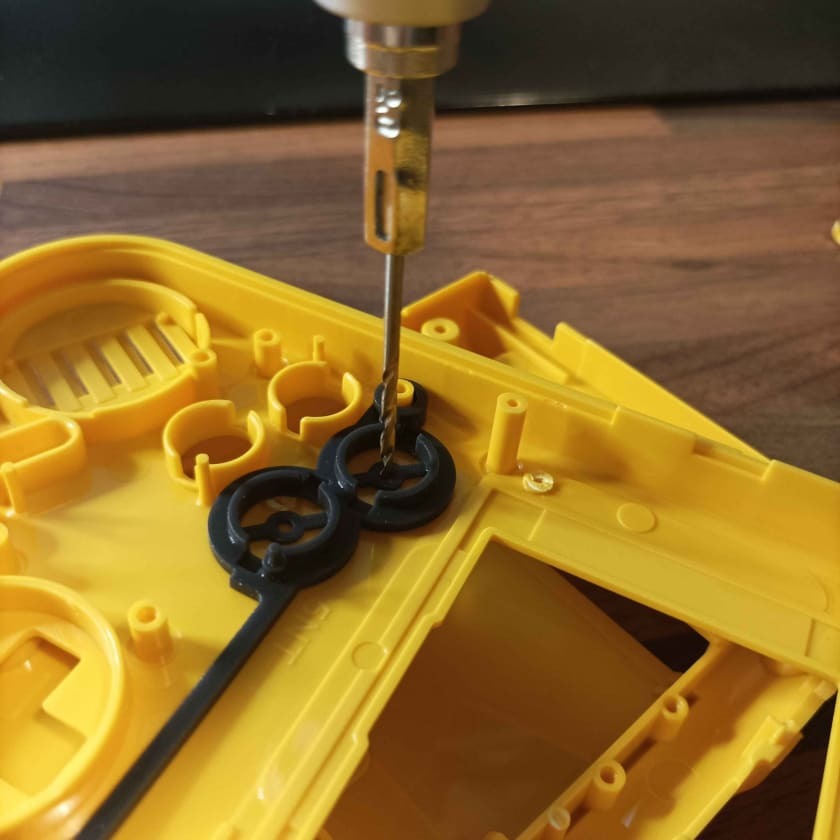

Step 7.
Using a small drill bit, drill a pilot hole

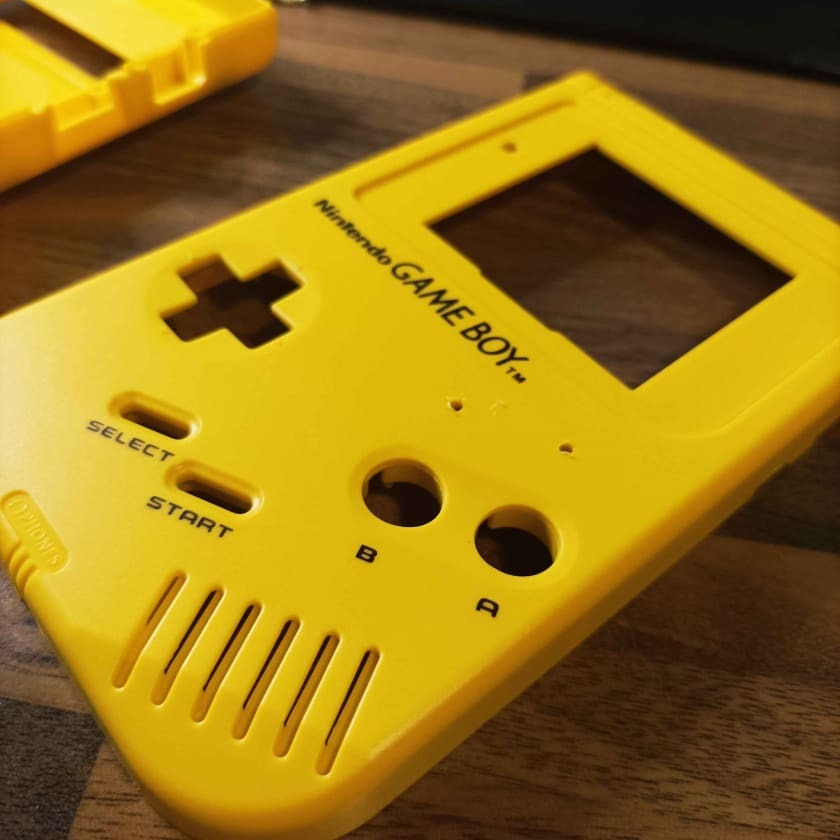

Step 8.
Using a stepped drill-bit enlarge the hole to 11mm. Go slow for a better and more accurate finish

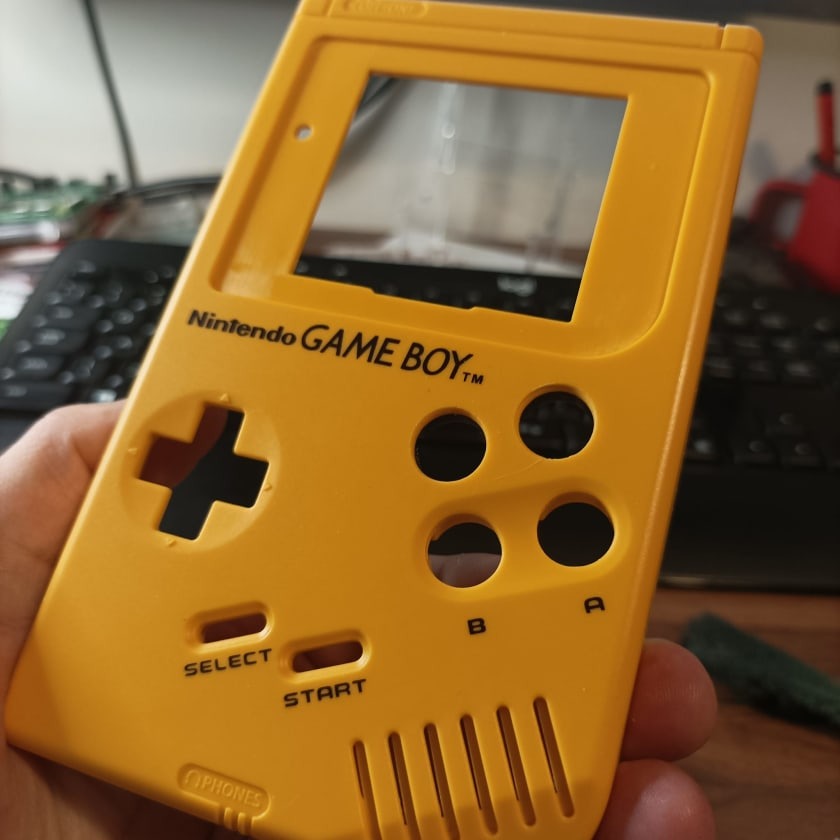

Step 9.

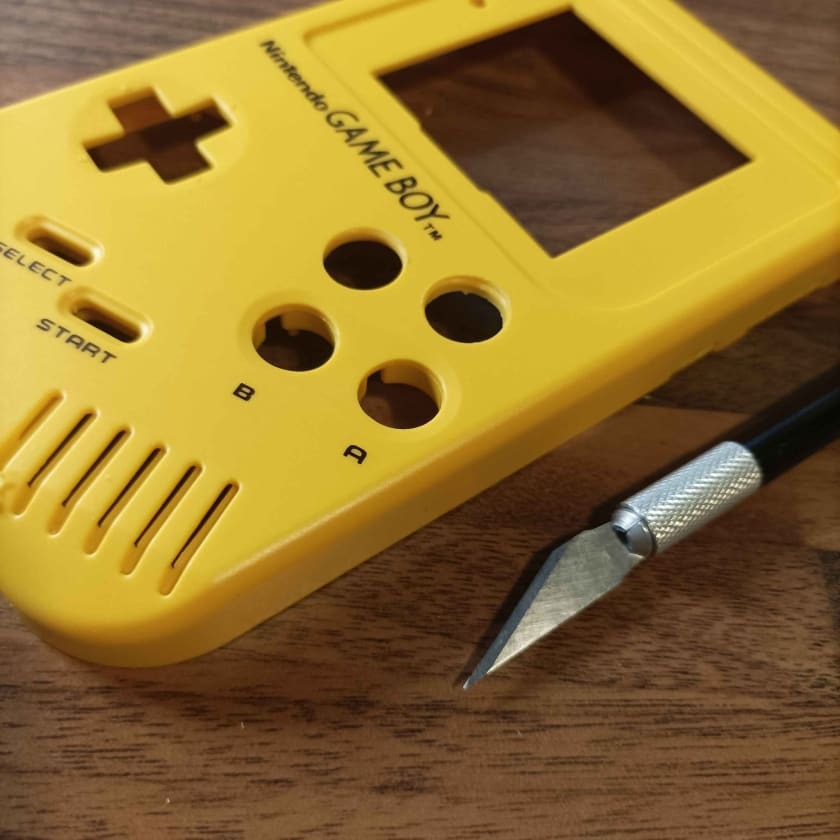

Use a sharp knife to remove any excess plastic and to smooth / soften the edge

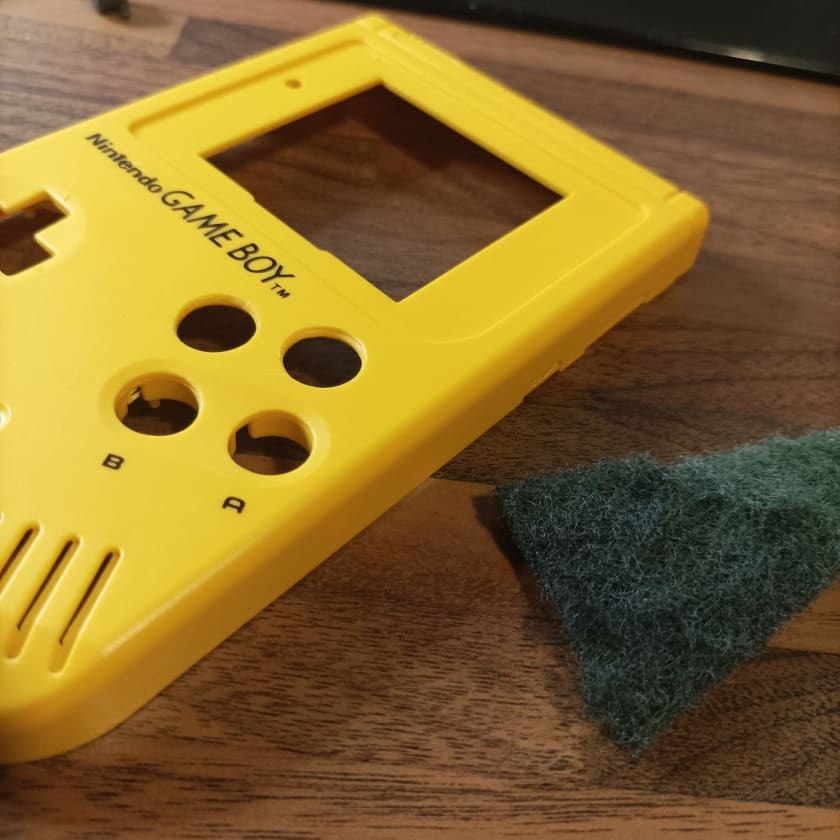

I sometimes use ScotchBrite to further "sand" the edges to soften them
